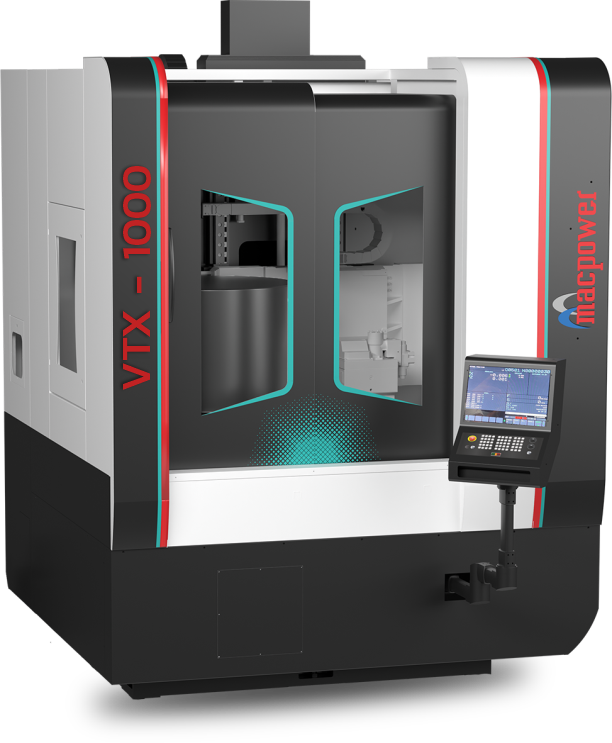

  • VTX 1000

Macpower introduces VTX series – CNC Vertical Turning Centers designed and developed by team that has abundance experience in manufacturing CNC turning centers and machining centers. It is a combination of high power performance and excellent unyielding construction. It is designed to operate in medium and high production environments. Machine is equipped with robust structure design to ensure rigidity, stability, accuracy and flexibility for the machining of chucking parts.

Moderately small footprint saves valuable workspace – perfect for automation or cell automation. Machine is offered with precision linear guide ways, indexing turret, swivelling control panel and dominant spindle. Optional 'C' Axis and a live tool turret enable components to be developed in single set-up.

BASE
Robust and adequately rib reinforced grade 25 cast iron base design assure maximum rigidity and stability. FEA techniques were used to design a rigid and structurally balanced machine, resulting in superior damping characteristics for minimized vibration to the work piece. The base is designed to offer superior workability and chip-discharging capability. The structure is stress relieved to give life time deformation free service.

Extra wide span between slide ways of 4 circuit linear guide way blocks is designed to withstand against increased acceleration and deceleration rates as well as increased cutting load.

COLUMN
Adequately ribbed column structure holds X & Z carriages, offering remarkable machining. To withstand heavy machining, optimal reinforced ribbing is directly casted into the one-piece column structure.

TURRET
Massive 8 stations fast indexing sturdy bidirectional turret is offered as a standard feature. Turret ensures robust metal cutting potential and high yield.

SPINDLE
The cartridge type high precision spindle is supported by the double row cylindrical roller bearing and bi-directional angular thrust bearing. Radial and axial loads are accommodated individually. The bearings are grease lubricated for life. The high torque, constant power supplying AC spindle motor minimizes spindle acceleration/deceleration rate, also enabling strong machining ability.
